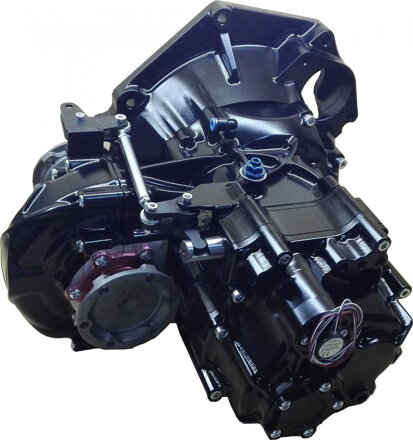

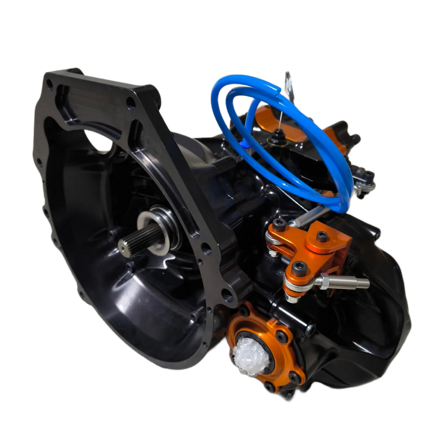

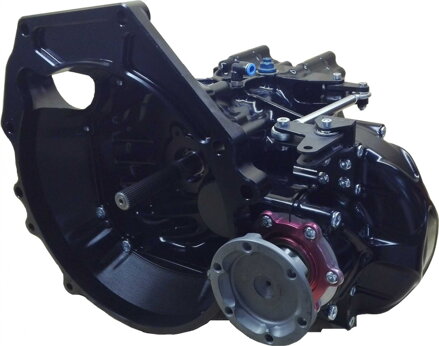

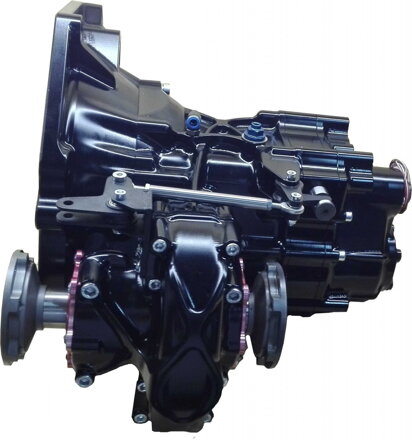

EVO1 Honda B series sequential gearbox

Technical specs:

• 6speed sequential with reverse gear

• Compact, lightweight and strong

• Straight cut gears

• 450nm / 900nm sprint

• Specific input shaft

• LSD lamela type with preload spring

• Ramp and plate system

• Wide range of final drives available

• Wide range of ratios available

• O-ring sealing between all housing parts

• Bolt for checking the oil level. Drain oil bolt

• Clutch bearing

• Shift selectors DOGS system

• Very strong and high quality CNC anodised billet casings

• Strong ouput flanges D100/D108mm (Lobro type)

• Bellhousing

• Gear lever

• 1 year warranty for broke the shafts or the teeth from the purchase of the gearbox!

Accesories to buy:

• Gear position sensor

• Display+wiring

• CV joint lobro type D100/D108

• Driveshafts

Bellhousings:

• Honda Civic 1,6 Vtec (B16)

• Honda Civic 1,6 Vtec (D16)

• Honda Prelude 2,2 Vtec (H22)

• Suzuki SC100

Honda CRX B16 (Slovakiaring)

Honda Civic K20 (Spa Francorchamps)
